Induction Heating for Aerospace & Defense Industry
Induction Heating For Aerospace Industry & Defense Industry Advantages
Efficiency: Induction heating systems convert a high percentage of electrical energy into heat, often up to 90%, which is significantly more efficient than traditional heating methods.
Precision: The technology allows for precise control over the heating process, ensuring that only the necessary areas are heated, which is critical for components with tight tolerances. The ... moreInduction Heating for Aerospace & Defense Industry
Induction Heating For Aerospace Industry & Defense Industry Advantages
Efficiency: Induction heating systems convert a high percentage of electrical energy into heat, often up to 90%, which is significantly more efficient than traditional heating methods.
Precision: The technology allows for precise control over the heating process, ensuring that only the necessary areas are heated, which is critical for components with tight tolerances. The high frequency heating machine often provides the best precision.
Speed: Induction heating can rapidly heat materials, reducing cycle times in manufacturing processes such as brazing, welding, and heat treatment.
Cleanliness: As a non-contact heating method, induction heating is clean, producing no fumes or smoke, which is beneficial for both the work environment and the quality of the final product.
Repeatability: The process is highly repeatable, providing consistent results every time, which is crucial for maintaining the quality standards in aerospace manufacturing.
Flexibility: Induction heating can be used for a wide range of applications, from heat treatment and brazing to curing composites and soldering, making it a versatile tool in the aerospace industry.
Safety: The absence of open flames or high-temperature surfaces in induction heating processes contributes to a safer working environment.
Environmental Friendliness: Induction heating systems are energy-efficient and produce less waste, aligning with the aerospace industry's sustainability goals. Many companies are now turning to induction heating solutions to meet their environmental targets.
Cost-Effectiveness: By reducing energy consumption and minimizing the need for replacement parts due to its non-contact nature, induction heating can lower overall production costs.
Induction Heating For Aerospace Industry & Defense Industry Products Solutions
01
In the aerospace and defense industries, induction heating technology has become a key solution due to its unique advantages in product quality and process consistency. This technology not only provides fast, precise, non-contact heating, ensuring the cleanliness, repeatability, and consistency of the production process, but also significantly improves efficiency and reduces environmental impact.
02
Induction heating plays a crucial role in tasks such as mechanical part connection, rapid brazing, and welding, ensuring aviation safety. Additionally, induction heating systems demonstrate their cost-effectiveness in maintaining expensive engine components, effectively repairing high-pressure turbine blades, relieving titanium welding stresses, matching brazed metering plates, and brazing honeycomb-sealed engine parts. The ability to precisely control heating speed, heating time, temperature, output power, and heating curves makes induction heating equipment decisive in manufacturing processes like thermal forming, thermal deformation, insulation material spraying, and part heat treatment.
#induction #heating #for #aerospace #industry
https://www.junko-energy.com/induction-heating-for-aerospace-defense-industry/
Induction Melting Application
Introduction of Melting Application
Induction smelting is a process of melting metal by using electromagnetic induction to generate eddy current heating in metal materials within an induction furnace, also known as induction melting.
1. Principle of Induction Smelting
Electromagnetic Induction: Induction smelting uses electromagnetic induction to generate eddy currents in metal materials in an induction furnace. This method is suitable for melting high-grade all... moreInduction Melting Application
Introduction of Melting Application
Induction smelting is a process of melting metal by using electromagnetic induction to generate eddy current heating in metal materials within an induction furnace, also known as induction melting.
1. Principle of Induction Smelting
Electromagnetic Induction: Induction smelting uses electromagnetic induction to generate eddy currents in metal materials in an induction furnace. This method is suitable for melting high-grade alloy steel, high-grade cast iron, high-temperature alloys, electrical engineering alloys, etc., as well as non-ferrous metals and their alloys such as copper, aluminum, zinc, etc.
2. Smelting Equipment
Induction Coil: The main parts of the induction furnace include the induction coil, furnace body, power supply, and control system. The induction coil is made of water-cooled copper pipes in a spiral hollow cylindrical shape, with a ratio of inner diameter to height usually between 1:2 and 1:3. The pitch of each turn of the spiral is equal, and sufficient space is left between turns for insulation.
3. Process Flow
Material Preparation: Place the metal material to be smelted into the furnace.
Induction Heating: High-frequency current generates a magnetic field in the induction coil, which in turn induces eddy currents in the metal material, rapidly heating the metal.
Melting: The metal melts under the effect of induction heating, forming liquid metal.
Smelting Control: Control the smelting process and temperature accurately by adjusting the parameters of the power supply and induction coil.
Cooling and Casting: After smelting, the liquid metal can be cooled and cast to form the required metal castings.
4. Advantages
Efficient Heating: Induction smelting can achieve rapid and uniform heating, with high thermal efficiency and fast smelting speed.
Easy Operation: The induction smelting process is highly automated, making it easy to operate and reducing the complexity of manual operations.
Environmentally Friendly: Compared with traditional smelting methods, induction smelting does not produce a large amount of harmful gases and dust, having a smaller impact on the environment.
High Material Utilization Rate: Due to the more uniform melting and mixing of metals during the smelting process, the utilization rate of materials is higher.
5. Application Fields
Induction smelting is widely used in the casting industry, including the melting, holding, and nodulizing of cast iron, as well as the melting, holding, and alloying of steel castings.
In addition, induction smelting is suitable for the preparation of high-performance metal materials, such as high-entropy alloys. High-entropy alloy matrix composites reinforced with in-situ TiC particles, such as FeCoCrNiCu, can be successfully prepared using vacuum induction smelting methods.

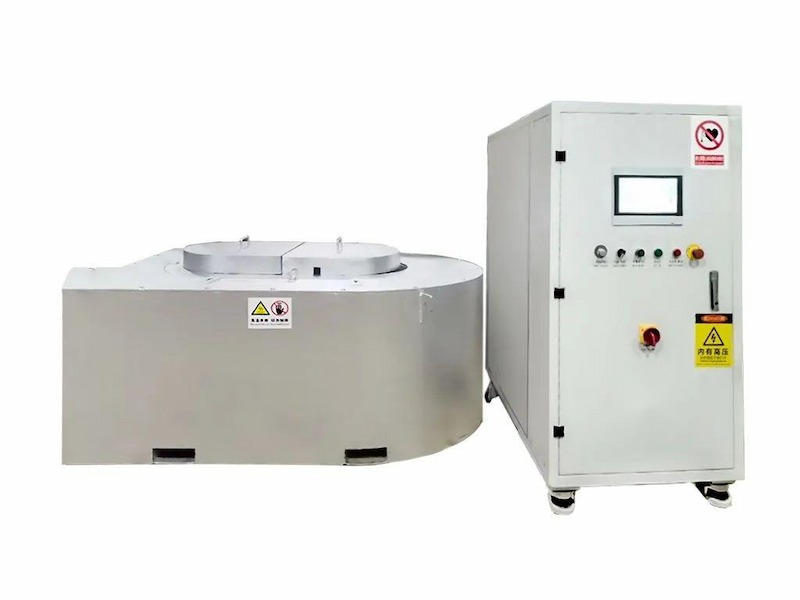

6. Characteristics of Zinc Smelting Equipment
Full air cooled induction heating technology, including the heating coil is also made of special custom materials, without additional water cooling.
With intelligent control system, constant power output mode, including full power output and constant power output, the temperature of zinc liquid can be controlled within 3 degrees to achieve the purpose of improving the quality of zinc liquid.
Heating rod heating, that is, direct heat conduction of zinc liquid heating, effectively improve the efficiency of heating zinc liquid. Further reduce the atmosphere temperature in the furnace, reduce the zinc oxide slag formed by the combination of zinc liquid and air, and can achieve continuous use of 1 month to 3 months without slag cleaning.
Energy saving effect, achieve electromagnetic induction heating rod heating, heat conduction to zinc liquid, compared with the traditional silicon carbon rod heating with the air to the zinc liquid slow heat conduction characteristics, energy saving of about 30%.
#vacuum #induction #furnace #for #sale
https://www.junko-energy.com/induction-heater-for-melting-metal.html

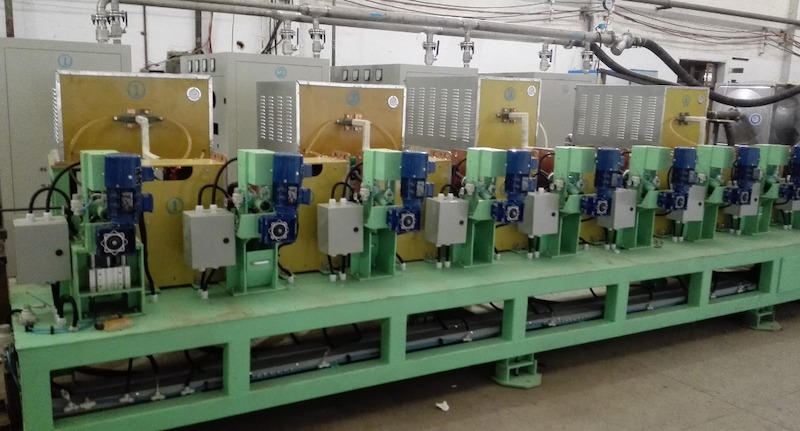

Induction Forging Application
Introduction of Forging Application
Induction forging is a modern metalworking process that utilizes the principles of electromagnetic induction to heat and shape metal components. This method is highly efficient and precise, offering several advantages over traditional forging methods.
1. Principle of Induction Heating
Electromagnetic Induction: In induction forging, a high-frequency alternating current is passed through a coil, creating a magnetic field. This ... moreInduction Forging Application
Introduction of Forging Application
Induction forging is a modern metalworking process that utilizes the principles of electromagnetic induction to heat and shape metal components. This method is highly efficient and precise, offering several advantages over traditional forging methods.
1. Principle of Induction Heating
Electromagnetic Induction: In induction forging, a high-frequency alternating current is passed through a coil, creating a magnetic field. This magnetic field induces eddy currents within the metal, which generate heat due to the resistance of the metal to the flow of the induced currents.
Localized Heating: The heat is generated directly within the metal, allowing for precise control over the heating area and temperature. This is particularly useful for heating specific parts of a workpiece without affecting the entire component.
2. Process Steps
Material Preparation: The metal workpiece is prepared, ensuring it is clean and free of any contaminants that could affect the induction heating process.
Induction Heating: The workpiece is placed within an induction coil. The coil generates a magnetic field that induces eddy currents in the metal, heating it rapidly and uniformly.
Forging: Once the metal reaches the desired temperature, it is forged using presses, hammers, or other forging tools. The heat from the induction process makes the metal more malleable and easier to shape.
Cooling: After forging, the workpiece is cooled to room temperature, which can be done by air cooling or water quenching, depending on the material and desired properties.
Post-processing: The forged component may undergo additional processes such as heat treatment, machining, or finishing to achieve the final desired properties and dimensions.
3. Advantages of Induction Forging
Energy Efficiency: Induction heating is highly energy-efficient, as it directly heats the metal with minimal heat loss.
Precision: The localized heating allows for precise control over the forging process, reducing the risk of overheating or underheating.
Speed: Induction forging can be much faster than traditional methods, as the metal can be heated rapidly.
Flexibility: The process can be easily adapted to different shapes and sizes of workpieces, making it suitable for a wide range of applications.
Improved Material Properties: The rapid heating and cooling rates can result in improved microstructures and mechanical properties of the forged components.
4. Applications
Induction forging is used in the production of various components in industries such as automotive, aerospace, and heavy machinery, where high strength and precision are required.
It is particularly useful for forging complex shapes or parts that are difficult to heat uniformly using conventional methods.
Hot Coil Spring (Red Coil Spring) Induction Heating Production Line
Process production process:
Turning over material → feeding → induction heating → heat preservation → rapid discharging → coil spring → trimming → (temperature raising) → quenching and cooling → tempering → tempering spray cooling
This production line system consists of a control part, a mechanical transmission part and an induction heating part. Among them, the AC speed regulation transmission system for feeding and rapid discharging is composed of a frequency converter and a motor. With IGBT super audio frequency induction heating power supply as the core, the process control of the system is completed through PLC centralized control. In order to achieve high system efficiency, high product quality, and high performance consistency.
Control section:
One Siemens TP277 touch screen, one Siemens S7-200 PLC, two high-precision infrared thermometers, and three ABB inverters.
Transmission mechanical part:
Turning rack, feeding mechanism, holding furnace transmission mechanism, rapid discharging machine, temperature measuring and sorting mechanism
Induction heating part:
Two sets of induction heating power supplies, two sets of load capacitor cabinets, and three sets of inductors.
Features:
① The production line operates fully automatically. It can record and monitor the number of workpieces, temperature, and operating voltage, current, power, speed and other parameters of the equipment, and perform statistics and analysis on the heating quality of the workpieces. It is easy to operate and maintain;
② Adopting the latest domestic technology IGBT induction heating power supply, it has the advantages of energy saving and high efficiency, and the overall heating efficiency is greater than 0.6;
③ Wide range of use, no need to change equipment configuration to produce φ12-φ85mm diameter springs;
④ The overall movable sensor structure automatically switches the sensor according to the diameter of the workpiece, making it convenient and quick to replace the porcelain tube, which improves production efficiency;
⑤ The transmission mechanism of the high-temperature link is made of high-temperature-resistant stainless steel and has a long service life;
⑥ Reasonable layout of the heating chamber of the holding furnace and a fully automatic temperature control system have the advantages of energy saving and high efficiency;
⑦ Fully closed-circuit cooling circulation pipeline and all stainless steel pipelines improve the stability of equipment operation.
Usage: Mainly used for hot rolled springs and waste heat quenching. By adjusting the equipment configuration, it can be used for bar quenching and tempering, annealing and tempering.
#induction #heater #for #forging
https://www.junko-energy.com/induction-heater-for-forging.html

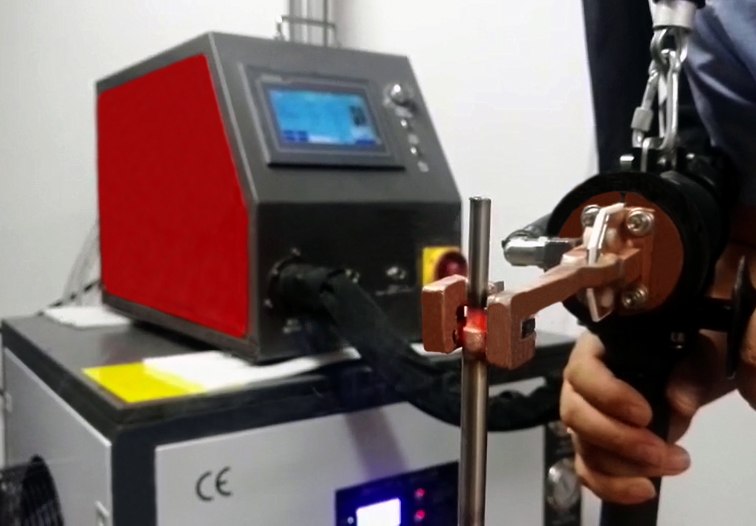

Induction Brazing Application
Introduction of Brazing Application
Induction brazing is a process that uses electromagnetic induction to heat and join two or more metal components. This method is highly efficient and precise, offering several advantages over traditional brazing methods.
1. Principle of Induction Brazing
Electromagnetic Induction: In induction brazing, a high-frequency alternating current is passed through an induction coil, creating a magnetic field. This magnetic field induc... moreInduction Brazing Application
Introduction of Brazing Application
Induction brazing is a process that uses electromagnetic induction to heat and join two or more metal components. This method is highly efficient and precise, offering several advantages over traditional brazing methods.
1. Principle of Induction Brazing
Electromagnetic Induction: In induction brazing, a high-frequency alternating current is passed through an induction coil, creating a magnetic field. This magnetic field induces eddy currents within the metal components, which generate heat due to the resistance of the metal to the flow of the induced currents.
Localized Heating: The heat is generated directly within the metal, allowing for precise control over the heating area and temperature. This is particularly useful for heating specific parts of a workpiece without affecting the entire component.
2. Process Steps
Material Preparation: The metal components to be brazed are prepared, ensuring they are clean and free of any contaminants that could affect the brazing process.
Induction Heating: The components are placed within an induction coil. The coil generates a magnetic field that induces eddy currents in the metal, rapidly heating the components to the brazing temperature.
Brazing: Once the components reach the brazing temperature, a filler metal (brazing alloy) is introduced. The filler metal melts and flows into the joint, creating a strong bond between the components.
Cooling: After the brazing process is complete, the components are cooled to solidify the filler metal and complete the joint.
Post-processing: The brazed joint may undergo additional processes such as inspection, cleaning, or finishing to ensure the quality and integrity of the joint.
3. Advantages of Induction Brazing
Efficient Heating: Induction brazing can achieve rapid and uniform heating, significantly reducing the heating time.
Energy Efficiency: Induction heating is highly energy-efficient, as it directly heats the metal with minimal heat loss.
Precision: The localized heating allows for precise control over the brazing process, reducing the risk of overheating or underheating.
Flexibility: The process can be easily adapted to different shapes and sizes of components, making it suitable for a wide range of applications.
Improved Joint Quality: The rapid heating and cooling rates can result in improved microstructures and mechanical properties of the brazed joints.
High energy density, fast heating speed, significantly improving production efficiency.
It is environmentally friendly and safe, and can work in vacuum or gas protected environments.
For the motor winding, do not damage the insulation.
Easy to achieve automation.
At the same time, the brazing process also puts forward requirements for portable, high power density, and wide matching range of induction brazing power sources. The portable induction heating power supply is most suitable for induction brazing, with a series of portable generators covering 1-360KW. The 40KW handheld generator weighs only 3Kg, and its functions such as fast temperature control, energy control, and fast rhythm operation are particularly suitable for brazing. These products are mainly used in major motor factories, transformer factories, rail electric locomotives, air conditioning refrigerators, compressors and other industries, and have been applied in projects such as Three Gorges hydroelectric generators, steam turbine generators, and wind power generation.
4. Applications of Induction Brazing
Induction brazing is used in various industries, including automotive, aerospace, electronics, and heavy machinery, where high strength and precision are required.
It is particularly useful for brazing components that are difficult to heat uniformly using conventional methods, such as complex shapes or parts with tight tolerances.
Welding of various hardware cutting tools: welding of diamond cutting tools, grinding tools, drilling tools, alloy saw blades, carbide turning tool, milling cutters, reamers, planers, woodworking drill bits, etc;
Welding of various hardware and mechanical accessories: silver welding and copper welding of the same or different metals, such as hardware bathroom products, refrigeration copper accessories, lighting accessories, precision mold accessories, hardware handles, egg beaters, alloy steel and steel, steel and copper, copper and copper, etc;
Composite pot bottom welding: mainly used for three-layer brazing of round, square, and other heterogeneous flat stainless steel pot bottoms and aluminum sheets, and can also be used for brazing other metal flat surfaces;
Welding of the heating plate of an electric kettle (electric coffee pot): mainly used for brazing between stainless steel flat bottoms, aluminum sheets, and various shapes of electric heating pipes;
Automation induction heating in the refrigeration and HVAC industry: radiators, distributors, air conditioning pipes, heat exchangers, etc.
#induction #heater #for #brazing
https://www.junko-energy.com/induction-heater-for-brazing.html

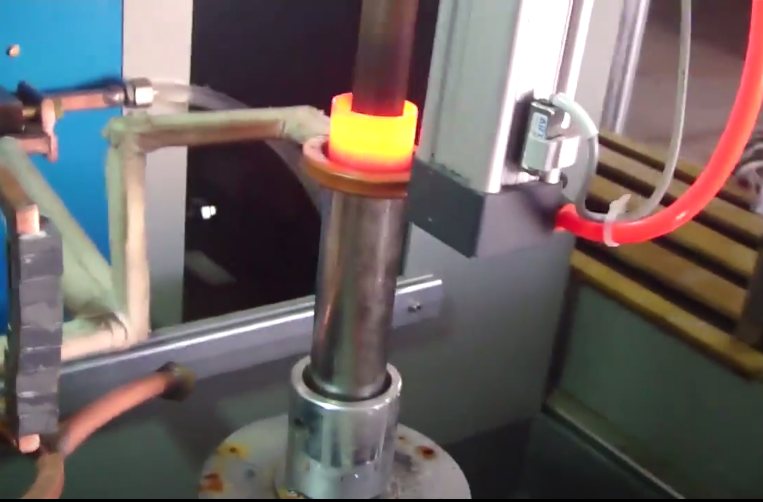

Induction Hardening Application
Introduction of Induction Hardening
Induction hardening is an advanced surface heat treatment technology widely used to improve the surface hardness and wear resistance of metal workpieces. This process utilizes the principle of electromagnetic induction to generate high-frequency eddy currents on the surface of the workpiece, rapidly heating the surface to the hardening temperature. Depending on the required depth of the hardened layer, different frequencies of... moreInduction Hardening Application
Introduction of Induction Hardening
Induction hardening is an advanced surface heat treatment technology widely used to improve the surface hardness and wear resistance of metal workpieces. This process utilizes the principle of electromagnetic induction to generate high-frequency eddy currents on the surface of the workpiece, rapidly heating the surface to the hardening temperature. Depending on the required depth of the hardened layer, different frequencies of current can be selected.
The main advantages of induction hardening include:
1. Efficient heating: Due to the direct action of the heat source on the surface of the workpiece, the heating speed is fast, the thermal efficiency is high, and there is less oxidation and decarburization of the workpiece surface.
2. High surface hardness: After hardening, the surface hardness of the workpiece is significantly increased, while the core maintains good plasticity and toughness, and the impact toughness, fatigue strength, and wear resistance are all enhanced.
3. Minimal deformation: Only the surface is heated, resulting in minimal overall deformation of the workpiece, making it suitable for the treatment of precision parts.
4. Easy to control: The depth and hardness of the surface hardened layer can be precisely controlled by adjusting the current frequency and power.
5. Strong adaptability: Suitable for various shapes and sizes of workpieces, including gears, shafts, crankshafts, camshafts, and rolls.
The equipment mainly consists of an induction power supply, load line, capacitors, transformers, inductors, and hardening machines. The power supply equipment outputs an alternating current with a suitable frequency, and the inductor is designed and manufactured according to the shape and requirements of the workpiece to ensure uniform heating.
Overall, induction hardening is an efficient, energy-saving, and environmentally friendly heat treatment method. By precisely controlling the process parameters, it can significantly enhance the performance of the workpieces and is widely used in fields such as automotive, aviation, and machinery manufacturing.

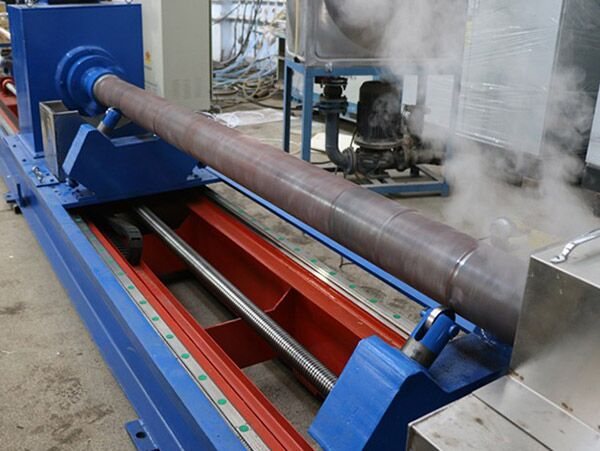

Concrete pump tube automatic hardening production line
1）Configuration Overview
1. XZZ-250SCN DSP digital High frequency induction heating machine
2. KCZG-WS-3000 Induction hardening machine for conveying straight pipe
3. Industrial Chiller–Hardening fluid and power cooling
4. Plate heat exchanger and stainless steel tank with 2m³ water tank and contains 1.5KW water pump.
2）Hardening Process Flow
Using 250KW IGBT digital intelligent DSP induction heating machine, frequency 5-20khz. pipe hardening 250kW Induction heating power output is used to quench the inner wall, and the inner water spray is used to quench the inner wall. According to the process demand, DSP power supply can be used for digital power distribution. When the induction heating equipment is heating the pump pipe of different specifications, the output power of inductor can be set automatically according to the model of the workpiece and the control system of the machine tool.
The central control center has a variety of heating process implementation and automatic control program switching functions. No manual intervention is needed to switch between different quenching processes.
The induction hardening heating coil is equipped with a water spraying device. Through the centralized control center program switching, the water spraying cooling process is implemented automatically for different workpiece models；
The running speed of the straight pipe of the production line is controlled by a fast high-power servo motor. The designed air running speed is ≥3 m /min. When heating, the rotating speed is controlled by frequency conversion motor, supported by multistage supporting roller in the middle of straight pipe, which can meet the requirements of working procedure (including feeding and unloading): 6min/ pc (3 meters), no soft belt, no thread.
#induction #hardening #materials
https://www.junko-energy.com/induction-hardening.html
Introduction of Annealing Application
Introduction of Annealing Application
Induction annealing is a heat treatment process that uses electromagnetic induction heating to reduce the hardness of metals and improve their plasticity and toughness.
Principle of Induction Annealing
Electromagnetic Induction: Induction annealing uses high-frequency alternating current to generate a magnetic field in an induction coil, which in turn induces eddy currents in the metal workpiece. These eddy currents ... moreIntroduction of Annealing Application
Introduction of Annealing Application
Induction annealing is a heat treatment process that uses electromagnetic induction heating to reduce the hardness of metals and improve their plasticity and toughness.
Principle of Induction Annealing
Electromagnetic Induction: Induction annealing uses high-frequency alternating current to generate a magnetic field in an induction coil, which in turn induces eddy currents in the metal workpiece. These eddy currents generate heat due to the resistance of the metal, thereby heating the workpiece. This method can achieve rapid and uniform heating with high thermal efficiency.
Process Flow
Material Preparation: Place the metal workpieces to be annealed inside the induction coil.
Induction Heating: Generate a magnetic field in the induction coil through high-frequency current, inducing eddy currents to rapidly heat the workpiece to the annealing temperature.
Soaking: After reaching the annealing temperature, maintain it for a period to allow changes in the internal microstructure of the workpiece, reduce internal stress, and promote grain growth.
Cooling: After soaking, the workpiece undergoes controlled cooling, usually slow cooling, to maintain the annealing effect.
Post-treatment: Depending on the requirements, further machining or surface treatment may be performed.
Advantages
Rapid Heating: Induction annealing can achieve rapid heating, significantly reducing heating time.
Energy Efficiency: Due to high thermal efficiency, induction annealing is more energy-efficient than traditional furnace annealing methods.
Uniform Heating: Induction heating ensures uniform temperature across all parts of the workpiece, avoiding inconsistent heating in traditional methods.
Flexibility: Suitable for various shapes and sizes of workpieces, including complex geometries.
Improved Safety: Only the workpiece itself is heated, reducing the risk of burns and fire hazards for on-site workers.
Application Fields
Metal Materials: Widely used in the annealing treatment of steel, aluminum, copper, and other metal materials.
Mechanical Parts: Used to improve the plasticity and toughness of mechanical parts and reduce processing stress.
Welded Structures: Used to eliminate residual stress after welding to prevent welding cracks.
Bullet Shell Induction Annealing Line includes the following components
1. High-Frequency Induction Heating Power Supply
It utilizes a series resonant circuit, which offers the benefits of a high power factor, minimal harmonic distortion, easy startup, and a low failure rate.
Equipped with Siemens (Infineon IGBT) as the inverter, digital phase synchronization technology is employed to ensure that the IGBT operates in a Zero Current Switching (ZCS) state, enhancing the service life and stability of the IGBT and reducing equipment loss.
The principle of electromagnetic induction is used, where alternating current generates eddy currents inside the material to be heated (i.e., the workpiece), and the workpiece is heated by the energy of these eddy currents. The induction coil does not come into direct contact with the heated workpiece. The coil transfers the electrical energy of the equipment to the workpiece through a magnetic field, transforming electrical energy into thermal energy within the workpiece.
2. Dual Position Automatic Annealing Machine System
The machine is designed as an automatic line with three workstations: a feeding station, a heating station, and an unloading station, specifically for bullet shell annealing.
The electrical system of the entire machine uses high-precision programming technology to achieve automatic control of the working program. It can store annealing process programs for a variety of workpieces.
The machine has the capability for both manual and automatic operation, suitable for both batch and single-part production, with quick and convenient debugging. It features an advanced and reliable structure, excellent performance, stable operation, and a long design life.
The machine consists of a bed, feeding part, discharging part, moving air claw mechanism, workpiece rotating lifting part, inductor dual position conversion and adjusting part, water spray, and water collection tank, among other stainless steel pipes, controls, and electrical appliances.
Unlike conventional mechanical or hydraulic transmission, this machine is primarily designed for bullet shell annealing. Due to its high positioning accuracy, the heating position of the workpiece can be set according to the different technological requirements of the workpiece during annealing by numerical control programming. Continuous automatic annealing of the workpiece can be accomplished by adjusting the heating speed or temperature, with the workpiece rotation speed regulated by frequency conversion.
3. Stainless Steel Gale Cooling Compound Closed Pure Water Cooling System
Equipment Principle
Air-cooled part: The working fluid (soft water or other liquids) circulates in the coil of a closed cooling tower. The heat of the fluid is absorbed by the tube wall of the coil and discharged from the machine through the fan at the top.
Water-cooled part: When the fluid temperature is too high (exceeding the set temperature), the sprinkler system is automatically activated. The spray pump sprays water onto the wall of the hot and humid tube, forming a water film that absorbs a large amount of heat through evaporation (evaporation latent heat). Some of the sprayed water becomes steam, carried away by the airflow, while the unevaporated water droplets fall into the sink for the next cycle. The fluid in the coils circulates in a closed loop with no theoretical consumption. The consumption of spray water is only 0.1-0.2% of the unit flow rate.
Equipment Structure
Main engine: The main cooling tower consists of a shell, copper cooler, exhaust system, spray system, dehydrator, sink, etc.
Auxiliary machine: The auxiliary machine is mainly a cooling tower control system, composed of a water pump, stainless steel water tank, and temperature control system.
#induction #heating #annealing #brass
https://www.junko-energy.com/induction-annealing.html
