Equipment for Metallurgical Industry
https://www.oritcranes.com/products/metallurgical-industry/
#steel #mill #crane #systems
Metallurgical heavy-duty cranes are tailor-made for extreme high-temperature, dusty and thermal radiation workshops for steelmaking, continuous casting and rolling. Core ladle, slab and coil handling cranes adopt dual-hoist redundant braking structure with integral heat insulation shielding and high-temperature resistant wiring. Multi-grade A7-A8 severe duty design be... moreEquipment for Metallurgical Industry
https://www.oritcranes.com/products/metallurgical-industry/
#steel #mill #crane #systems
Metallurgical heavy-duty cranes are tailor-made for extreme high-temperature, dusty and thermal radiation workshops for steelmaking, continuous casting and rolling. Core ladle, slab and coil handling cranes adopt dual-hoist redundant braking structure with integral heat insulation shielding and high-temperature resistant wiring. Multi-grade A7-A8 severe duty design bears frequent heavy impact loads, equipped with real-time temperature sensing and remote fault diagnosis. Optional electromagnetic beams, power tongs and slag pot tilting modules satisfy molten metal, hot billet and scrap unmanned transfer demands.

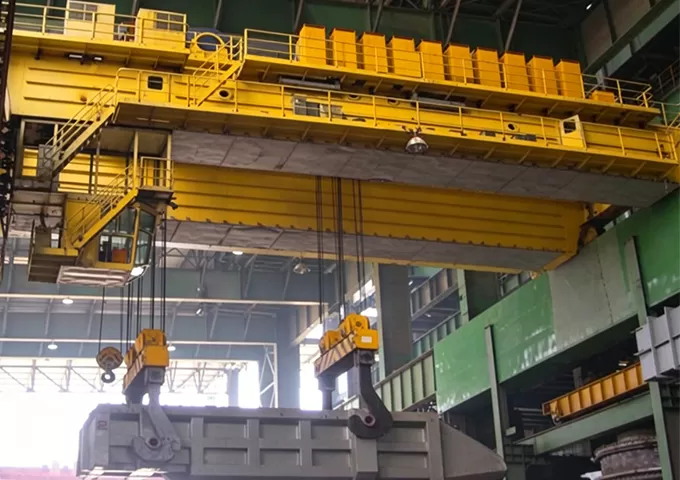

Ladle Handling Crane
The double-girder ladle handling crane is a high-performance core piece of equipment specifically designed for metallurgical melt shops. It is engineered for the safe and efficient handling of molten metal ladles in environments characterized by high temperatures, heavy dust, and intense thermal radiation. Its applications span converter hot metal charging, ladle refining furnace transfers, and continuous casting operations.
Charging Crane
The charging crane feeds scrap and auxiliary materials into converters or electric arc furnaces (EAFs) within steel-making shops. As critical equipment for raw material supply, it integrates hoisting, tilting, and precision charging functions to ensure stable scrap box handling and accurate furnace charging under frequent, heavy-duty continuous operating cycles.
Slab and Billet Handling Crane
The slab and billet handling crane is specialized equipment designed for continuous casting and rolling mill applications. It is used for handling, stacking, and furnace charging of slabs at temperatures exceeding 650°C as well as ambient-temperature billets.
Coil and Plant Handling Crane
The coil and plant handling crane is specialized equipment designed for rolling mills and finished product warehouses. It is used for handling, stacking, and truck loading/unloading of steel coils and sections, accommodating both hot-rolled and cold-rolled coils as well as various section profiles.
Scrap Handling Crane
The scrap handling crane is a specialized piece of equipment designed for scrap recovery and transfer in metallurgical workshops. It is widely used for grabbing, handling, and centralized processing of materials such as scrap steel, slag, and waste parts, contributing to the resource recovery of scrap materials.
Insulated Crane
Insulated Crane is special lifting equipment for non-ferrous metal electrolytic workshops of aluminum and copper, applied to anode replacement, cell maintenance and electrolyte cleaning with A6-A7 duty classification and 8–32t lifting capacity. It adopts a three-layer insulation structure with insulating gaskets and sleeves at key joints, achieving insulation resistance over 1MΩ and DC withstand voltage of 1500–2000V to cut off conductive current loops and avoid short circuit or electric shock. Fitted with anti-magnetic parts and HF-resistant anti-corrosion coating, it integrates real-time insulation monitoring, dual brakes and VFD micro-speed positioning to adapt to harsh electrolytic environments with strong magnetic fields and corrosive fumes.
Automated Metallurgical Slag Pot Handling System
The Automated Metallurgical Slag Pot Handling System is core equipment for metallurgical slag treatment processes. It integrates crane technology, automatic positioning, slag pot tilting, and temperature control systems, designed for automated transfer and dumping operations of converter slag and refining slag.
Metallurgical Industry Comprehensive Material Handling Solutions
From raw material intake to finished product handling, Oritcranes provides a full suite of metallurgical crane solutions tailored to the entire production chain. Our Slab & Billet Handling Cranes, Coil & Plant Handling Cranes, Scrap Handling Cranes, and Insulated Cranes deliver exceptional durability and precision in high-intensity, dusty, and high-temperature workshops.
Equipped with automated positioning systems, robust mechanical designs, and intelligent monitoring features, our cranes optimize material flow, and reduce manual labor. This integrated approach helps metallurgical plants improve overall equipment effectiveness (OEE), lower maintenance costs, and enhance workplace safety.
Hangar Crane System
https://www.oritcranes.com/products/hangar-crane-system/
#multi-point #suspension #crane

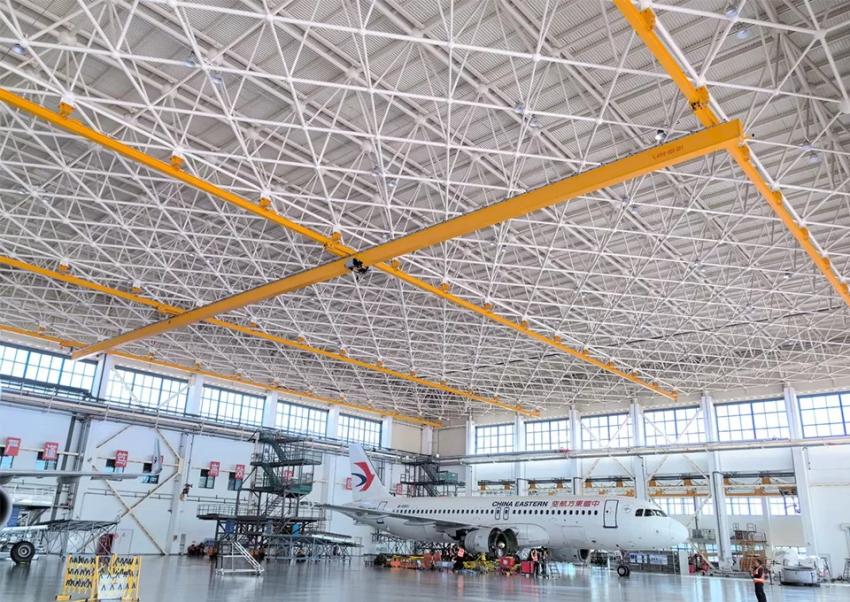

Hangar Crane System
For the maintenance applications, Oritcranes provides comprehensive lifting equipment solutions to various operational scenarios. Multi-suspension hangar cranes serve as critical infrastructure in modern large-scale aircraft maintenance hangars. Featuring a unique multi-point suspension design, these cranes effectively overcome challenges in heavy lifting and prec... moreHangar Crane System
https://www.oritcranes.com/products/hangar-crane-system/
#multi-point #suspension #crane
Hangar Crane System
For the maintenance applications, Oritcranes provides comprehensive lifting equipment solutions to various operational scenarios. Multi-suspension hangar cranes serve as critical infrastructure in modern large-scale aircraft maintenance hangars. Featuring a unique multi-point suspension design, these cranes effectively overcome challenges in heavy lifting and precision positioning across large-span areas, establishing themselves as core equipment for ensuring efficient and safe aircraft maintenance operations.
Advantages of Multi-suspension Hangar Crane System
Uniform Load Distribution
Multiple suspension points evenly share loads, reducing concentrated pressure on roof structures. Compatible with large-span grid roofs and lowers construction costs.
Stable & Precise Operation
Combined with variable frequency drive and anti-sway system, the multi-point suspension design minimizes swing and delivers high positioning accuracy, protecting delicate aviation components during aircraft MRO work.
Flexible Large-span Design
Span length can be adjusted by adding or removing suspension points, with a maximum span of 100 meters, perfectly suited for oversized aviation workspaces.
High Safety & Durability
Multi-point restraint effectively prevents side bending and rail gnawing under eccentric loads. The crane resists deformation, offering long service life and enhanced operational safety for aircraft maintenance.
Wide Application Scope
Designed for high-standard large-span facilities, widely deployed in aircraft MRO hangars and aviation manufacturing plants, supporting maintenance operations for all types of aircraft.
Aircraft Crane Reference
FACILITY: AIRBUS A330 MRO HANGAR
CRANE WITH 6 SUSPENSION POINTS AND WALKWAY
10t load capacity
18-12-12-12-18m span
76 m total span including girder overhangs
Single or double girder options available.
Designed for wide spaces, effectively covering large work areas.
Compact layout minimizes headroom requirements.
Significantly reduced self-weight leads to lower loads on the building structure.
What Is an Aircraft Hangar Crane?
An aircraft hangar crane is a specialized overhead lifting system designed for aircraft maintenance facilities, aviation workshops, and aerospace service centers. Unlike standard industrial cranes, aircraft hangar cranes provide precise positioning, smooth operation, and reliable load control for handling aircraft components and maintenance equipment. These crane systems are commonly used for aircraft servicing, component replacement, and repair operations where safety and accuracy are critical. With customized lifting capacity, span, and control options, aircraft hangar cranes help improve maintenance efficiency while reducing manual handling risks in aviation environments.
Explosion-Proof Overhead Cranes
https://www.oritcranes.com/products/explosion-proof-cranes/
#explosion-proof #cranes

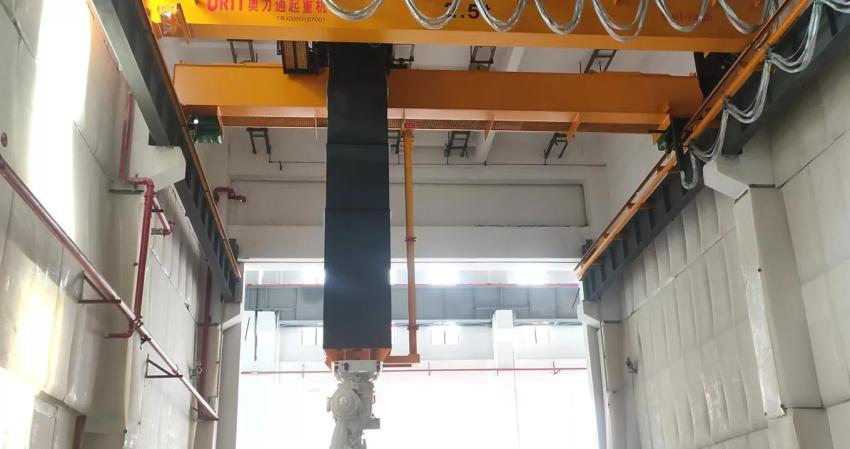

Explosion-Proof Overhead Cranes
Designed for equipment lifting, maintenance handling, and assembly operations, our explosion-proof cranes and hoists are ideal for refineries, chemical plants, paint shops, water treatment facilities, and printing plants. With stable explosion-proof performance and proven reliability, they meet the demanding requirements of chemical and mili... moreExplosion-Proof Overhead Cranes
https://www.oritcranes.com/products/explosion-proof-cranes/
#explosion-proof #cranes
Explosion-Proof Overhead Cranes
Designed for equipment lifting, maintenance handling, and assembly operations, our explosion-proof cranes and hoists are ideal for refineries, chemical plants, paint shops, water treatment facilities, and printing plants. With stable explosion-proof performance and proven reliability, they meet the demanding requirements of chemical and military applications.
Our explosion proof overhead crane and hoists serve oil, petrochemical, military, aerospace, and explosive material industries, including drilling platforms, refineries, and gas power plants. Certified to GB3836 and ATEX standards, they are suitable for Zone 1/2, Zone 21/22, and explosive material zones F1/F2, ensuring reliable safety.
Product Composition & Key Components of Explosion Proof Overhead Crane
Compliant Explosion-Proof Design: Utilizes a combined flameproof, increased safety, and intrinsic safety explosion-proof technology. Achieves explosion-proof ratings up to Ex d IIB T4 / CT4, eliminating spark and electrostatic risks. Ideally suited for flammable gas environments in petrochemical industries and holds national explosion-proof certification.
Corrosion-Resistant & Durable Construction: Features anti-corrosion painting and rust-proof treatment on the frame to withstand corrosion from chemical gases and oil products. Offers ingress protection up to IP66, ensuring long-term stable operation in humid and corrosive conditions.
Multi-Level Safety Protection: Equipped with overload protection, upper and lower limit switches, explosion-proof brakes, door-machinery interlocks, and more. Electrical components meet controlled temperature standards, preventing lifting accidents at the source and ensuring safety in high-risk operations.
Stable, Efficient & Adaptable Performance: European-style lightweight design ensures smooth, low-noise operation and precise positioning. Adaptable for precision maintenance of chemical equipment and high-frequency lifting tasks, compatible with on-site intelligent management systems.
Certifications & Technical Specifications of Explosion Proof Overhead Crane
ATEX / IECEx / Ex / CE / CCC certified.
Gas Explosion Protection (Ex db IIC T4 Gb) & Dust/Fiber/Propellant (Military) Explosion Protection (Ex tb IIIC T135°C Db) dual certification.
Explosion-proof motor with "flameproof + increased safety" hybrid design, IP66 protection, Class H insulation, 60% ED.
Explosion-proof electrical control box, IP66, standardly equipped with safety monitoring system.
Explosion-proof pendant station, aluminum alloy housing, IP66, dual-button for stepless speed control.
Explosion-proof overload protection.
Explosion-proof hoist limit switch, 4-stage rotation, programmable.
Explosion-proof hook and wheels (copper or stainless steel) eliminate friction sparks.
Pulley guard with copper inserts to prevent friction sparks.
European-style low headroom design reduces required building height.
Flexible drive with high transmission efficiency.
Standard disc brake, optional second brake available.
Hardened gearbox, maintenance-free design.
High-strength galvanized steel wire rope.
Full-circle rope guide prevents rope jumping and loosening.
Explosion-Proof Crane
Composition: Bridge structure, explosion-proof crab/ trolley travel mechanism, explosion-proof hoisting mechanism, explosion-proof electrical control system, safety protection devices.
Key Components: Explosion-proof motor, explosion-proof electrical control box, explosion-proof brake, explosion-proof hook, explosion-proof limit switch, explosion-proof pendant station, explosion-proof wheels.
Explosion-Proof Electric Hoist
Composition: Explosion-proof hoisting motor, explosion-proof gearbox, explosion-proof drum, explosion-proof hook block, explosion-proof control box.
Key Components: Flameproof drive components, sealed explosion-proof electrical controls, wear-resistant explosion-proof hook.
Related Project Cases of Explosion Proof Overhead Crane
Project Names: Sanmei Chemical Project; An ordnance manufacturing factory for the military in Chongqing (a central government-affiliated project).
Project Brief: Supply of 40t explosion-proof cranes and 32 explosion-proof cranes for military propellant environments. These cranes, which support the Wolong Group, are used for production material handling, assembly, equipment lifting, and unit maintenance operations. They have been operating stably for over three years and have received high recognition from customers.
Engine Work Station Gantry System
https://www.oritcranes.com/products/engine-work-station-gantry-system/
#workstation #crane

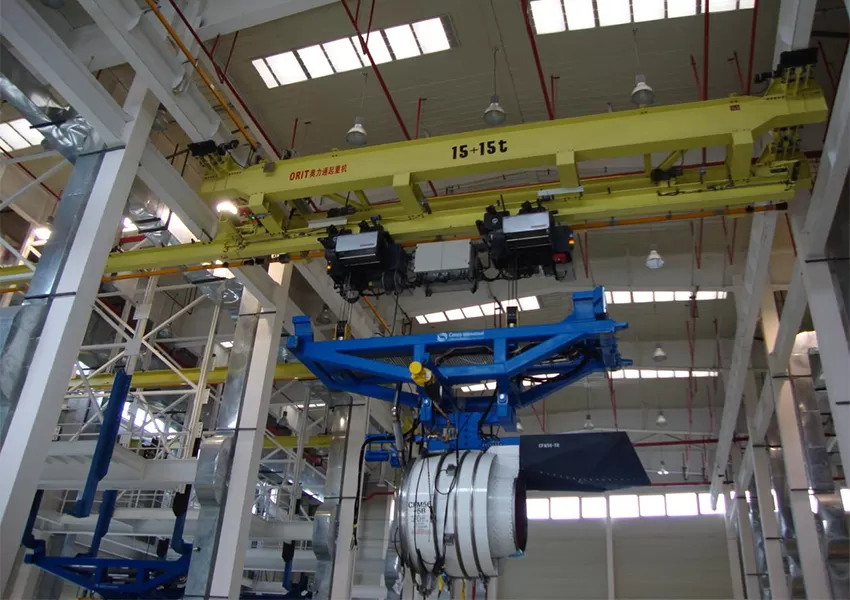

Engine Work Station Gantry System
The engine work station gantry crane is a high-strength lifting equipment fixed above the engine maintenance station. It is equipped with specialized engine slings and a precision lifting control system, designed for accurate positioning, attitude adjustment, tilting, and stable support of engine assemblies or core components during ... moreEngine Work Station Gantry System
https://www.oritcranes.com/products/engine-work-station-gantry-system/
#workstation #crane
Engine Work Station Gantry System
The engine work station gantry crane is a high-strength lifting equipment fixed above the engine maintenance station. It is equipped with specialized engine slings and a precision lifting control system, designed for accurate positioning, attitude adjustment, tilting, and stable support of engine assemblies or core components during maintenance processes. Unlike overhead transport systems, it is not intended for long-distance movement but serves high-frequency, high-precision lifting operations within the workstation.
Advantages of Engine Work Station Gantry System
Fixed above engine maintenance stations, suitable for high-frequency lifting with stable and reliable performance.
Fitted with dedicated engine slings and precise control system for accurate positioning, tilting and steady support.
Designed for short-range in-station lifting rather than long-distance transfer, enabling focused and efficient maintenance.
Built with high-strength structure to safely hold complete engine assemblies and key core components.
Optimized for elaborate overhaul, meeting high-precision demands of engine disassembly, inspection and assembly.
Engine Handling System
https://www.oritcranes.com/products/engine-handling-system/
#industrial #aircraft

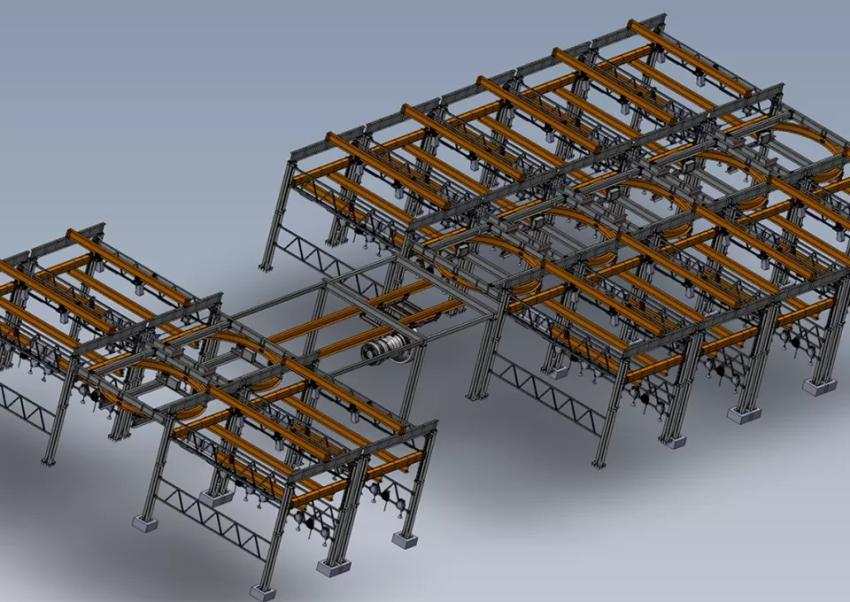

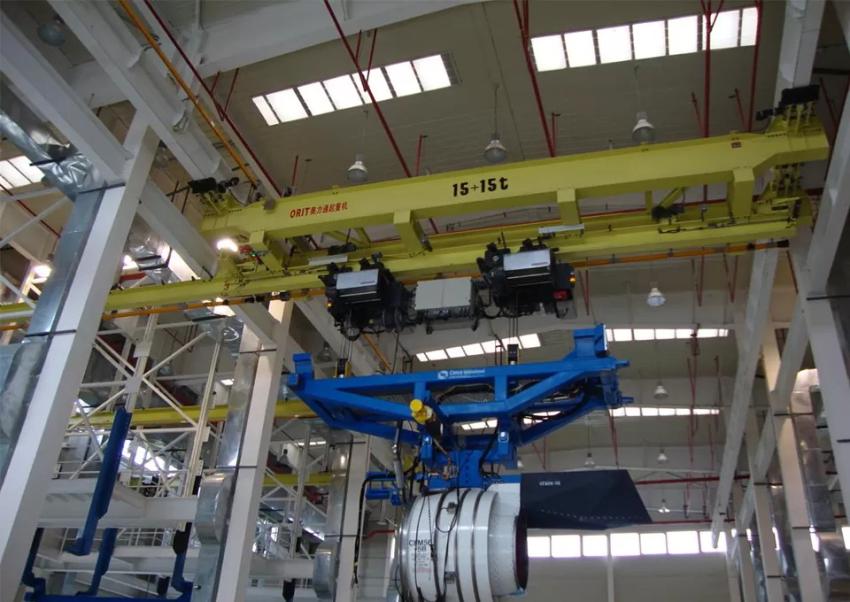

Engine Handling System
The Oritcranes engine handling system enables smooth and precisely controlled aerial movement of aircraft engines, completely eliminating collision risks with ground equipment and significantly enhancing operational safety. Equipped with multiple safety protection features—including anti-sway devices, overload protection, and precision positioning—the system ensure... moreEngine Handling System
https://www.oritcranes.com/products/engine-handling-system/
#industrial #aircraft
Engine Handling System
The Oritcranes engine handling system enables smooth and precisely controlled aerial movement of aircraft engines, completely eliminating collision risks with ground equipment and significantly enhancing operational safety. Equipped with multiple safety protection features—including anti-sway devices, overload protection, and precision positioning—the system ensures stable and controlled moving throughout the entire process. Furthermore, it greatly improves the efficiency of engine hoisting, transportation, and storage, directly increasing aircraft maintenance turnover rates and thereby boosting overall operational performance.
Advantages of Engine Handling System
High-altitude transportation avoids collision risks with ground facilities and greatly improves operation safety.
Equipped with multi-safety protections including anti-sway and overload protection, realizing stable and high-precision whole-process handling.
Integrates hoisting, transferring and storage procedures, significantly boosting overall handling efficiency of aero engines.
Double Girders Overhead Crane
https://www.oritcranes.com/products/double-girder-overhead-crane.html
#Orit #cranes
#manufacturer

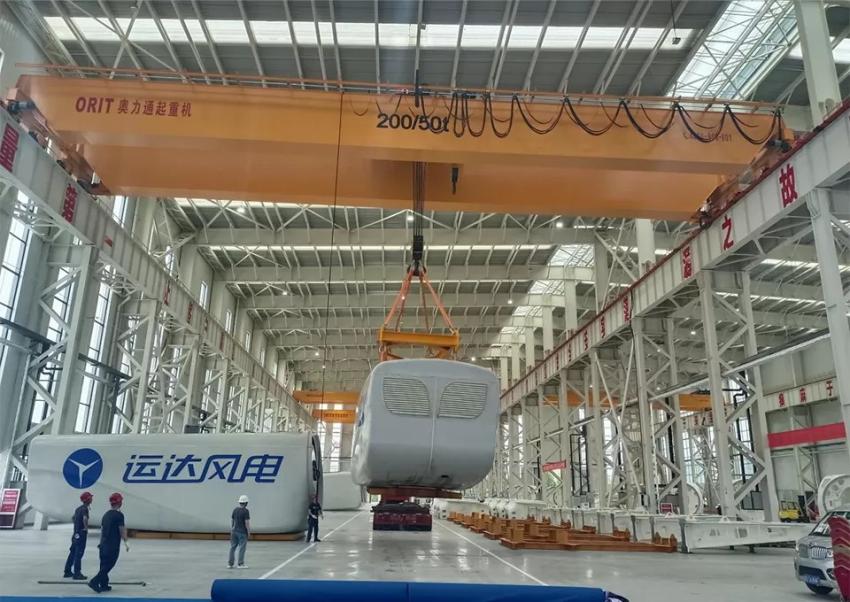

Double Girders Overhead Crane
The European standard double-girder bridge crane adopts a European optimized design philosophy, featuring light self-weight, low wheel load, and low headroom, effectively reducing workshop construction costs and improving space utilization. The hoisting mechanism comes standard with hardened gear flexible drive and a compact structu... moreDouble Girders Overhead Crane
https://www.oritcranes.com/products/double-girder-overhead-crane.html
#Orit #cranes
#manufacturer
Double Girders Overhead Crane
The European standard double-girder bridge crane adopts a European optimized design philosophy, featuring light self-weight, low wheel load, and low headroom, effectively reducing workshop construction costs and improving space utilization. The hoisting mechanism comes standard with hardened gear flexible drive and a compact structure, paired with a variable frequency drive control system to achieve smooth and impact-free hoisting and traveling. The equipment integrates a real-time safety monitoring system that continuously tracks lifting load, operating status, and brake performance, ensuring safe and reliable lifting operations. All core components are manufactured to standardized configurations, delivering stable crane performance. It is widely used for material handling and equipment maintenance in industries such as machinery manufacturing, metallurgy, warehousing, and papermaking.
Equipment for Aviation Industry
https://www.oritcranes.com/products/aviation-industry/
#ORITCRANES#solutions
Your Expert Partner in Aviation MRO.
In pursuit of optimal airline operations, increased profitability, and enhanced service quality, major airlines are consistently working to shorten aircraft Maintenance, Repair and Overhaul (MRO) cycles.
As a dedicated partner with decades of aviation industry expertise, Oritcranes remains steadfastly committed to the research, development and in... moreEquipment for Aviation Industry
https://www.oritcranes.com/products/aviation-industry/
#ORITCRANES#solutions
Your Expert Partner in Aviation MRO.
In pursuit of optimal airline operations, increased profitability, and enhanced service quality, major airlines are consistently working to shorten aircraft Maintenance, Repair and Overhaul (MRO) cycles.
As a dedicated partner with decades of aviation industry expertise, Oritcranes remains steadfastly committed to the research, development and innovation of intelligent lifting systems for AVIATION MRO. Powered by innovative product designs and advanced industrial technologies, we deliver tailored lifting solutions to leading MRO companies, guaranteeing both safety and efficiency in maintenance and repair operations.
Aviation Industry Equipment
Tele-Platform
TELE-PLATFORM FROM ORITCRANES: OFFERING RAPID AND SECURE ACCESS TO ELEVATED WORK AREAS.
Traditional fixed-level platforms designed for specific airframe configurations consume substantial hangar operating space and limit operational flexibility, leading to inefficient operations.
Modern hangar design now achieves optimal three-dimensional space utilization through integrated Tele-Platform and overhead bridge cranes. These systems are widely used in essential aviation MRO tasks, including major overhauls, inspections, and painting operations.
Hangar Crane System
MULTI-SUSPENSION HANGAR CRANES
For the maintenance applications, Oritcranes provides comprehensive lifting equipment solutions to various operational scenarios. Multi-suspension hangar cranes serve as critical infrastructure in modern large-scale aircraft maintenance hangars. Featuring a unique multi-point suspension design, these cranes effectively overcome challenges in heavy lifting and precision positioning across large-span areas, establishing themselves as core equipment for ensuring efficient and safe aircraft maintenance operations.
Engine Handling System
ENGINE HANDLING SYSTEM OPTIMIZES ENGINE FLOW
The Oritcranes engine handling system enables smooth and precisely controlled aerial movement of aircraft engines, eliminating collision risks with ground equipment and enhancing operational safety. Equipped with multiple safety protection features—including anti-sway devices, overload protection, and precision positioning—the system ensures stable and controlled moving throughout the entire process. Furthermore, it greatly improves the efficiency of engine hoisting, transportation, and storage, directly increasing aircraft maintenance turnover rates and thereby boosting overall operational performance.
Engine Work Station Gantry System
ENGINE GANTRY CRANE
The aircraft engine gantry crane is a high-strength lifting equipment fixed above the engine maintenance station. It is equipped with specialized engine slings and a precision lifting control system, designed for accurate positioning, attitude adjustment, tilting, and stable support of engine assemblies or core components during maintenance processes. Unlike overhead transport systems, it is not intended for long-distance movement but serves high-frequency, high-precision lifting operations within the workstation.
Aviation Industry Compliance & Certification
Oritcranes fully conforms to stringent specifications for aviation MRO. Complete cranes and core components are certified with authoritative qualifications including Special Equipment Manufacturing License and CE. The safety structures, precision positioning, seismic and explosion-proof designs of our products strictly comply with international standards such as FEM and DIN.
The multi-suspension hangar cranes, tele-platforms, engine handling systems and engine work station gantry systems have all passed comprehensive type tests, meeting acceptance criteria for both civil and military aircraft maintenance hangars. Complete test reports and third-party certification documents are supplied upon equipment delivery, enabling aviation enterprises to complete site audits rapidly, eliminate compliance hazards, and ensure long-term safe and standardized lifting operations for aircraft maintenance.
Featured Aviation Projects & Global References
Changzhou - Xinyu Aviation Tele-Platform + Multi-Suspension Hangar Crane Systems
Xinjiang Airport: Aviation Tele-Platform + Multi-Suspension Hangar Crane Systems
Guangzhou: GAMECO Maintenance Hangar Four-Point Suspension Hangar Cranes
