Umbrella valves are essential elastomeric components that function as high-performance one-way check valves, acting as the silent, reliable guardians of modern fluid management systems. By permitting flow in one direction while effectively preventing backflow, an umbrella valve ensures the structural integrity and long-term efficiency of sensitive applications. Whether you are maintaining the high-precision requirements of medical respiratory devices, optimizing the performance of automotive fuel systems, or ensuring consistent dosing in advanced household appliances, a high-quality silicone umbrella valve offers unmatched reliability and chemical stability.
At Hopewell, we leverage over 20 years of specialized expertise in silicone rubber molding to deliver precision-engineered solutions tailored to the most demanding industrial environments. Our commitment to quality ensures that every rubber umbrella valve we produce meets rigorous global standards for sealing performance and material longevity.
What Is an Umbrella Valve?

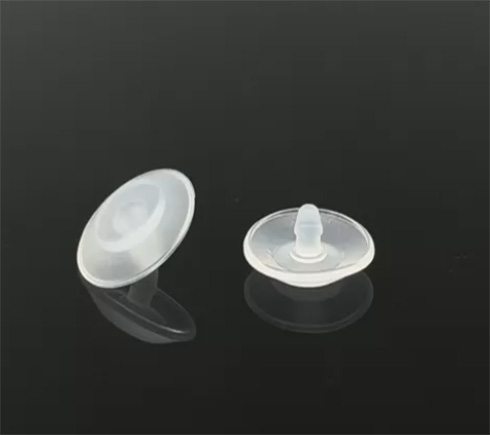

An umbrella check valve is a specialized elastomeric one-way component, characterized by its flexible, circular diaphragm—resembling the shape of an umbrella—connected to a central stem. Designed for autonomous flow regulation, this assembly is seated within a valve seat featuring one or more flow holes. The primary umbrella valve seal mechanism relies on the inherent elasticity of high-quality materials, particularly LSR (Liquid Silicone Rubber). When the valve is properly assembled, the center stem secures the component in place, while the umbrella-shaped edge maintains constant, uniform tension against the seat. This design allows it to seal or open based on pressure differentials, eliminating the need for additional mechanical components like springs or metallic hinges. The valve umbrella seal is engineered to remain static under closed conditions, ensuring that no leakage occurs in critical fluid lines.
How Does an Umbrella Valve Work?
The operation of an umbrella valve is entirely autonomous, governed by the physics of the surrounding fluid pressure:
Closed State: Under resting conditions or when backpressure is present, the elastic nature of the diaphragm keeps the outer edge pressed firmly against the valve seat. This creates a secure, leak-proof seal umbrella interface, preventing any backflow from occurring.
Opening Process: As inlet pressure increases and eventually exceeds the valve's pre-defined cracking pressure, the force acting on the underside of the diaphragm causes it to flex and lift away from the valve seat, effectively opening the flow path.
Resetting: Once the inlet pressure drops, the diaphragm's molded elastic memory forces it to immediately snap back to its closed position. This provides an instant, reliable seal, ensuring consistent performance cycle after cycle without the degradation associated with mechanical springs.
Key Benefits and Industrial Applications
Our silicone umbrella valve solutions are engineered for exceptional chemical resistance, extreme temperature stability, and extended service life.
Selection Guide: Umbrella vs. Duckbill
When designing your system, it is important to consider the differences between an umbrella check valve and a duckbill umbrella valve configuration. While both are elastomeric one-way valves, the umbrella type is often preferred for its superior static seal integrity and compact footprint. In contrast, a duckbill umbrella valve design may be utilized in systems requiring specific flow patterns or different cracking pressure profiles.
Selection Checklist:
Cracking Pressure: Clearly define the specific pressure required to open the valve for your application
Fluid Compatibility: Select material grades (e.g., medical or food-grade) that are fully compatible with your specific media
Application Environment: Consider temperature fluctuations and chemical exposure levels
Assembly Needs: Choose between manual pull-in or automated push-in stems based on your production line setup
Conclusion
At Hopewell, we combine advanced LSR injection molding with over 20 years of industry experience to provide reliable, precision-engineered silicone solutions. With our dedicated cleanroom production facilities and deep expertise in automated manufacturing, we support global customers from initial concept development to full-scale mass production. If you are looking for a reliable partner for your custom umbrella valve design or require professional material consultation for your specific project, please contact our engineering team today to discuss your requirements. Let us help you achieve superior fluid control performance.
Table of Content [Hide]
1. Understanding Duckbill Valves: Core Working Principles
2. Key Technical Advantages: Why Duckbill Valves Excel
3. Standard Sizing & Targeted Applications: Our Product Lineup
4. Selecting the Right Configuration: Design and Installation Options
5. Partner with Our Experts: Custom Fluid Control Solutions
In modern fluid management, precision and reliability are non-negotiable. Whether you are engineering high-precision office supply components or high-volume consumer packaging, the components managing your fluid pathways dictate the success of your final product. Among the most effective solutions for a valve with flow control, the elastomeric duckbill check valve stands out as a premier choice for engineers seeking simplicity, durability, and high performance.
Understanding Duckbill Valves: Core Working Principles

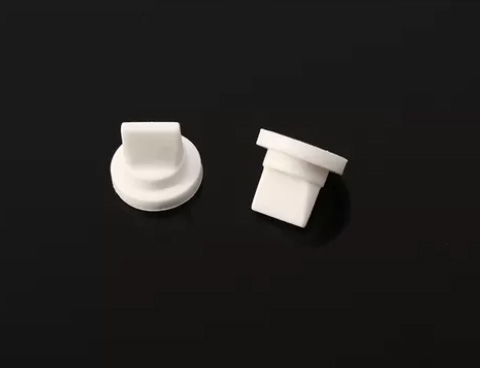

At its core, a duckbill valve is a compact, single-piece one-way check valve engineered to facilitate forward flow while preventing backflow without the need for complex mechanical parts, springs, or hinges. The mechanism relies entirely on the natural elasticity of the premium silicone material.
Under normal conditions, the "lips" of the duck bill remain tightly sealed due to their inherent structural design. When forward pressure is applied, the lips flex open to allow fluid, gas, or viscous paste to pass through. As soon as the pressure is equalized or back pressure occurs, the elastomer naturally reverts to its closed position, creating a reliable, leak-proof seal. This pressure-differential mechanism completely eliminates common failure points found in traditional mechanical valves.
Key Technical Advantages: Why Duckbill Valves Excel
Duck valves are widely preferred over mechanical alternatives in demanding environments due to their superior structural tolerance .Below is a technical comparison for precision applications:
Standard Sizing & Targeted Applications: Our Product Lineup
As showcased in our standard product catalog, Hopewell's precision silicone valves are custom-engineered for specific industrial and consumer applications where fluid isolation is critical. Our off-the-shelf and customizable configurations include:
Primary Application: Specifically optimized for ink cartridges and precision printing hardware, preventing air ingestion and ink leakage while maintaining stable structural pressure.
Primary Application: Ideal as a high-performance water check valve for premium water bottles, sports flasks, and travel mugs, offering a seamless drinking experience with zero accidental spills.
12.5mm Non Return Valve (High-Viscosity Dispensing)
Primary Application: Engineered as a robust water valve and dispensing solution for viscous personal care products, such as liquid toothpaste pumps, lotions, and cosmetic packaging, ensuring clean cut-offs without dripping.
Selecting the Right Configuration: Design and Installation Options
Selecting the optimal valve is not just about choosing the right material; it is about how smoothly the component integrates into your product housing. At Hopewell, we provide various mounting configurations to suit different housing geometries:
Flanged: Features an outer flange for secure mechanical retention in pressurized setups.
Push-in: Ideal for rapid, automated assembly in plastic or metal housings using a friction-fit design.
Sleeved: Provides a streamlined, inline profile, perfect for compact assemblies where space is at a premium.
Partner with Our Experts: Custom Fluid Control Solutions
At Hopewell, we do not just supply standard parts; we provide fully engineered manufacturing solutions. With over 15 years of experience in high-precision silicone manufacturing and LSR (Liquid Silicone Rubber) injection molding, we understand the exact technical nuances required for flawless fluid control.
From initial concept development and slit-size calibration to automated mass production, our team is dedicated to solving your complex sealing challenges. We are proud to operate a 20,000 m² facility featuring Class 100,000 cleanroom production, ensuring that every single valve meets the highest international quality standards.
Ready to optimize your fluid system? Contact our engineering experts today to discuss your custom silicone project and discover how our precision duckbill solutions can enhance your product's performance.
