Electrical Angular Steel Tower

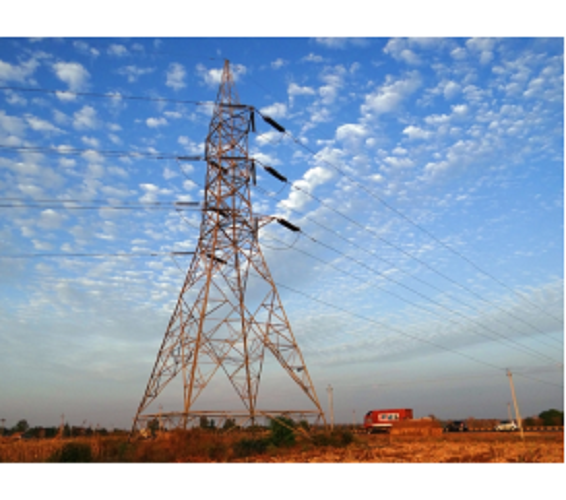

A transmission line tower, also known as an electrical pylon, is a tall structure that supports an overhead power line. Typically, it is a steel lattice tower. Transmission towers in electrical grids carry high-voltage transmission lines that move bulk electric power from generating stations to electrical substations, where it is delivered ... moreElectrical Angular Steel Tower
https://www.junjiangtower.com/products/electrical-angular-steel-tower.html
#angular #tower
Electrical Angular Steel Tower
A transmission line tower, also known as an electrical pylon, is a tall structure that supports an overhead power line. Typically, it is a steel lattice tower. Transmission towers in electrical grids carry high-voltage transmission lines that move bulk electric power from generating stations to electrical substations, where it is delivered to end users. Transmission towers fall into four categories: suspension towers,tension towers, dead-end terminal towers and transposition towers.
Electrical Angular Steel Tower Specification
Voltage See each client's requirement
Tower type Self-suspension
Structure Overlap Connection, bolt connection
Material Q345B/A572, min YS >=345MPA;
Q235B/A36, min YS>=235MPA
Or following other standards from clients
Earthquakeproof Grade Grade 8
Ice wrapping 5-10 mm
Verticality 1 / 1000
Working Temperature - 45°C -+ 45°C
Working life span 30/50 years
Anti-corrosion Hot Dip Galvanization, Painting or both
Welding Standard AWS D1.1, AS554, AS 4100 standard or equivalent
Galvanization standard GB/T 13912-2002, EN ISO 1461,ASTM/A123 or equivalent
Nuts& Bolts Grade 8.8 refer to GB/T 5780, GB/T 5782
Spare parts Additional tower and bolt spare parts will be sent
Electrical Angular Steel Tower Features
Our transmission towers can be made of angular steel, steel pipe or both. We design the towers to be high safety with high Material utilization so as yo control the cost. And the raw materials are from the trusted steel suppliers which we’ve been collaborating with for decades. In the stage of welding, CO₂ welding and submerged arc auto welding are adopted in our fabrication process. Both Factory test report and type test are available if required.
CCTV Camera Pole
https://www.junjiangtower.com/products/cctv-camera-pole.html
#cctv #camera #stand #pole
CCTV Camera Pole
Jun Jiang CCTV camera pole is produced in accordance with national standards and industry standards. It passes related inspections in aspects such as materials, dimensions and structure, load-bearing capacity, and durability. Through its monitoring and guiding functions, it plays a key role in enhancing road traffic safety, orderliness, and convenience, protecting people... moreCCTV Camera Pole
https://www.junjiangtower.com/products/cctv-camera-pole.html
#cctv #camera #stand #pole
CCTV Camera Pole
Jun Jiang CCTV camera pole is produced in accordance with national standards and industry standards. It passes related inspections in aspects such as materials, dimensions and structure, load-bearing capacity, and durability. Through its monitoring and guiding functions, it plays a key role in enhancing road traffic safety, orderliness, and convenience, protecting people's daily lives and production activities.
Specification of CCTV Camera Pole
Height 5000mm~6800mm
Thickness of the wall 4mm~14mm
Arm length 1000mm~16000mm
Material GB Q235
Base flange thickness ≥14mm
CCTV Camera Pole Design
The design parameters of the pole structure are set to resist earthquakes of magnitude 6 and winds of level 8.Post-galvanizing passivation treatment, with good adhesion of the plastic coating, and a thickness of ≥65μm.The plastic coating meets ASTM D3359-83 standards.
The roundness standard of the pole is ≤1.0mm.The surface of the pole is smooth and consistent, with no horizontal weld seams.The pole is sealed and capped to prevent water vapor from entering, with reliable internal water leakage prevention measures.
Vertical deviation is ≤1.0%.
How to Ground a CCTV Camera Pole?
Proper grounding of a CCTV camera pole is essential for safety and equipment protection. Start by driving a grounding rod into the earth near the pole. Connect a grounding wire from the rod to the pole using a grounding clamp. Ensure the wire is securely fastened and free of corrosion. Next, connect the grounding wire to the camera’s grounding terminal. Verify all connections are tight and weatherproof. Regularly inspect the grounding system for wear and tear. Proper grounding helps prevent electrical surges and enhances the overall reliability of your CCTV system.
How to Install Cameras on CCTV Camera Poles?
Mounting Bracket Installation: Secure the mounting bracket to the pole at the desired height using appropriate bolts and tools, ensuring it is level and stable.
Camera Attachment: Attach the camera to the mounting bracket, making sure it is firmly secured. Adjust the angle for optimal coverage of the surveillance area.
Wiring and Connections: Run the power and data cables from the camera to the control unit, ensuring all connections are tight and weatherproof to prevent damage.
Testing and Calibration: Power on the camera and test its functionality. Adjust settings and angles as needed to ensure clear and comprehensive surveillance coverage.
Camouflaged Tower
https://www.junjiangtower.com/products/camouflaged-tower.html
#camouflaged #tower

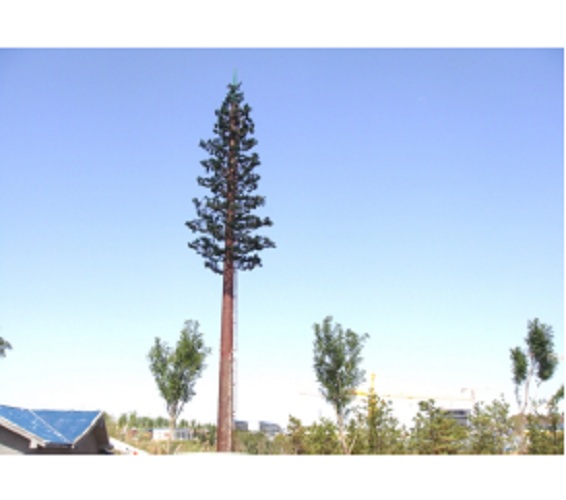

Camouflaged Tower
A camouflaged tower is a type of landscape tower adorned with simulated tree bark on its surface, crafted from an advanced composite material that integrates waterproof, fireproof, and corrosion-resistant properties. It retains communication functionality while seamlessly blending with its surroundings. Camouflage monopole towers come in various types such as imitation pine,... moreCamouflaged Tower
https://www.junjiangtower.com/products/camouflaged-tower.html
#camouflaged #tower
Camouflaged Tower
A camouflaged tower is a type of landscape tower adorned with simulated tree bark on its surface, crafted from an advanced composite material that integrates waterproof, fireproof, and corrosion-resistant properties. It retains communication functionality while seamlessly blending with its surroundings. Camouflage monopole towers come in various types such as imitation pine, coconut palm, and banyan, installed primarily in scenic areas. Jun jiang also offers other communication towers like three legged tower for sale.
Camouflaged Tower Specification
Height As per request
Material Q355B & Q235B or equivalent
Basic Wind speed 160km/h_3 second gust or as per design
Quantity of platform As per request
Antenna Type GSM, RRU,CDMA etc.
Antenna load As per request
Surface treatment Hot dip galvanized and 仿真树皮
Dsign standard GB / ANSI / TIA-222-G
Anti-seismic Grade 8
Welding Standard AWSD1.1
Nuts and Bolts Gr 6.8 and 8.8
Certification ISO9001
Service life 30/50 years
Camouflaged Tower Features
A camouflage telecom tower has exquisite structure with an aesthetic appearance. Strong stability and occupies a small footprint. Utilizes a monopole structure with a footprint of only 1-2 square meters and requires a foundation of 4-6 square meters. Long service life with enduring exterior effects. Surface treated with hot-dip galvanization for excellent corrosion resistance and coated with simulated tree bark to ensure long-term aesthetic integrity.
Angular Steel Tower
https://www.junjiangtower.com/products/angular-steel-tower.html
#angle #steel #tower

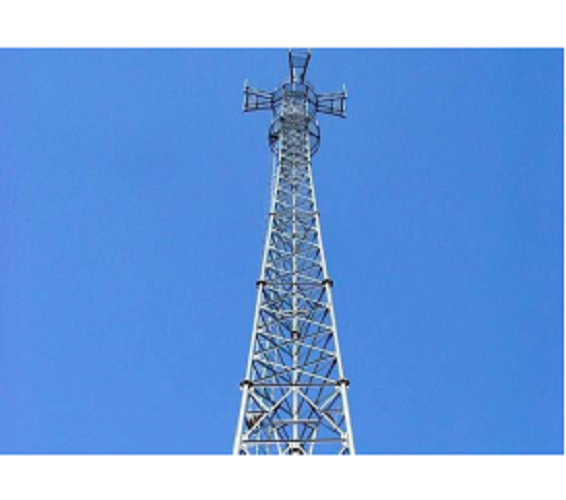

Angular Steel Tower
The angle steel communication tower is a support structure made of angle steel and steel plates. Angle steel towers by Jun jiang angle steel tower factory can be used as brackets for communication antennas, microwave antennas, and other equipment, mainly used by mobile, China Unicom, railway, broadcasting, and television departments for installing signal transmission ... moreAngular Steel Tower
https://www.junjiangtower.com/products/angular-steel-tower.html
#angle #steel #tower
Angular Steel Tower
The angle steel communication tower is a support structure made of angle steel and steel plates. Angle steel towers by Jun jiang angle steel tower factory can be used as brackets for communication antennas, microwave antennas, and other equipment, mainly used by mobile, China Unicom, railway, broadcasting, and television departments for installing signal transmission antennas or microwave transmission equipment. Therefore, this angular tower is also called a microwave communication tower or broadcasting and television tower. The common materials used are GB Q235B and Q345B. Jun jiang construction also offers steel tower for sale. Contact us to get more information.
Angular Steel Tower Specification
Height As per request
Type 3 legs / 4 legs
Material Q355B & Q235B or equivalent
Basic Wind speed 180km/h_3 second gust or as per design
Quantity of platform As per request
Antenna load As per request
Antenna Type GSM, RRU,CDMA, MW etc.
Dsign standard GB / ANSI / TIA-222-G
Surface treatment Hot dip galvanized/Painting
Color As per request
Anti-seismic Grade 8
Fall Arrest System Available if need
Nuts and Bolts Gr 6.8 and 8.8
Service life 30/50 years
Certification ISO9001
Angular Steel Tower Features
The angle steel tower is the most common type of tower. Angle steel material requires minimal work of welding during manufacturing (usually mainly cutting materials and drilling holes). It is easy to process with high cost-effectiveness. The structure is simple and stable, capable of mounting multiple antenna devices with strong load-bearing capacity. It has a long service life and is preferred choice for iron tower construction. However, angle steel towers by Jun jiang steel tower factory have large dimensions, often placed in suburban or rural areas with lower land rental costs.
3-legged Communication Tower
https://www.junjiangtower.com/products/3-legged-communication-tower.html
#three #legged #tower
3-legged Communication Tower
3-legged communication towers are tall steel structures effective in increasing the height of communication antennas. The 3 legged towers are composed of tower bodies, platforms, lightning rods, ladders, antenna supports, and other steel components. These 3 legged antenna towers undergo hot-dip galvanization for corrosion resistance and are... more3-legged Communication Tower
https://www.junjiangtower.com/products/3-legged-communication-tower.html
#three #legged #tower
3-legged Communication Tower
3-legged communication towers are tall steel structures effective in increasing the height of communication antennas. The 3 legged towers are composed of tower bodies, platforms, lightning rods, ladders, antenna supports, and other steel components. These 3 legged antenna towers undergo hot-dip galvanization for corrosion resistance and are essential for microwave, ultra-short wave, and wireless network signal transmission and broadcasting in communication network systems.
3-legged Communication Tower Specification
Height As per request
Material Q355B & Q235B or equivalent
Dsign standard GB / ANSI / TIA-222-G
Surface treatment Hot dip galvanized/Painting
Color As per request
Quantity of platform As per request
Antenna load As per request
Antenna Type GSM, RRU, CDMA, MW etc.
Anti-seismic Grade 8
Fall Arrest System Available if need
Nuts and Bolts Gr 6.8 and 8.8
Service life 30/50 years
Certification ISO9001
3-legged Tower Design
The three legged tower columns use external flange connections, with bolt tensioning, making them less prone to damage and lowering maintenance costs. The triangular arrangement of tower columns conserves steel material and reduces footprint size. The truss-style structural design allows for convenient transportation and installation, with short construction periods. The 3 legged tower design varies with wind load curves, ensuring smooth lines and reducing the risk of collapse during rare wind disasters, thereby minimizing human and animal casualties.
High-Quality Steel Towers as Per Request
https://www.junjiangtower.com/products/
#self #standing #tower
Crafted with precision and designed for durability, Steel Tower stands as a testament to superior engineering and timeless style. Whether you're building the foundation of power transmission or extend your touch to the world outside by telecommunication, trust Steel Tower to deliver unparalleled and uncompromising performance. Elevate your projects with the robust reliability and sophistic... moreHigh-Quality Steel Towers as Per Request
https://www.junjiangtower.com/products/
#self #standing #tower
Crafted with precision and designed for durability, Steel Tower stands as a testament to superior engineering and timeless style. Whether you're building the foundation of power transmission or extend your touch to the world outside by telecommunication, trust Steel Tower to deliver unparalleled and uncompromising performance. Elevate your projects with the robust reliability and sophisticated design of Steel Tower. For steel tower for sale, choose Jun Jiang to, where innovation and quality converge to create the extraordinary.
Types of Steel Towers for Sale

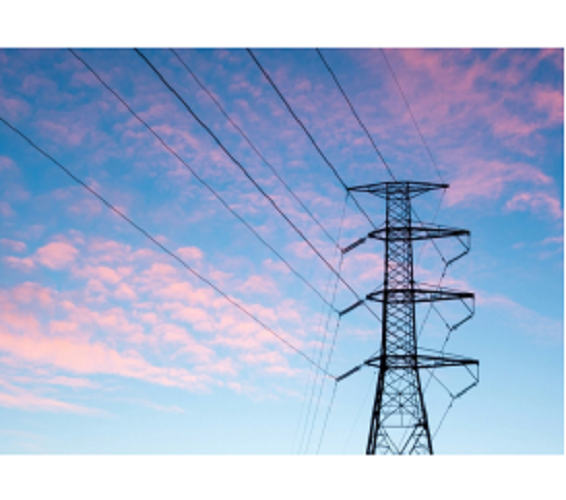

Electrical Tower
The electrical towers including transmission line tower, power steel pole and power substation, are designed and fabricated according to national standard.

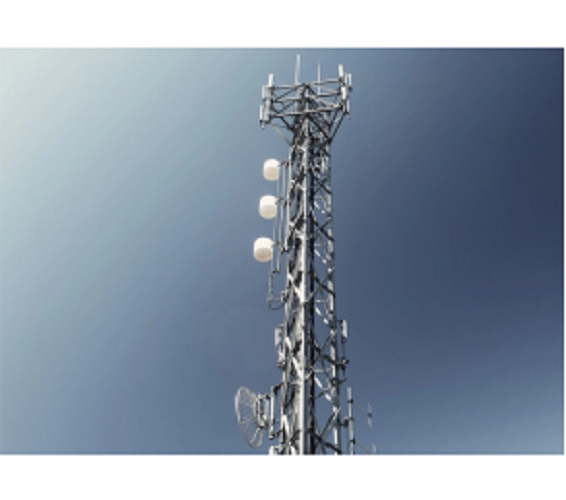

Telecom Tower
The telecom towers can be in the types of 3/4 legged in both angular or tubular steel, or monopole, with designed working-life span of 30 years.
Lamp Pole
Lighting poles are in the type of monopole or lattice structure used in streets or stadium. Custom solutions are available to suit your requirements.
CCTV Camera Pole
Camera poles, are commonly used for CCTV, security and surveillance. They are square or round steel poles, and camera towers.
Lightning Tower
To protect the high building or structure from the lightning strikes, generally in lattice or monopole type.
Power Fittings
Also called power line fittings, used to support or connect the electric devices to make sure of the power transmission.
Metal Fittings
Metal fittings or steel hardwares are galvanized components used to fix and connect overhead conductors.
Why Choose Jun Jiang for Steel Towers?
Choosing Jun Jiang for steel towers can be a strategic decision for several reasons. Here are some key factors that might make Jun Jiang a preferred choice:
Quality and Reliability: Jun Jiang is known for producing high-quality steel towers that meet stringent industry standards. Our products are often subjected to rigorous quality control processes to ensure durability and reliability.
Experience and Expertise: With years of experience in the industry, Jun Jiang has developed a deep understanding of the technical and engineering requirements for steel towers. Our expertise can be invaluable in delivering projects that meet specific needs and challenges.
Customization: Jun Jiang offers customization options to cater to unique project requirements. Whether it’s for telecommunications, power transmission, or other applications, we can tailor our products to fit specific specifications.
What Are the Requirements for Raw Materials in Steel Tower Construction?
The steel used in steel towers must adhere to the specifications and grades outlined in the design documents and possess a certificate of compliance upon leaving the factory. Only after passing secondary inspections can the steel be used. The steel should bear traceable markings. Deviations in size, shape, and weight are permissible for hot-rolled steel plates and strips within stipulated ranges. Steel surfaces should be free of cracks, folds, scars, inclusions, or excess scale. If there are rust spots, blemishes, or scratches, their depth must not exceed half the allowed negative deviation value of the steel thickness.
FAQs of Steel Towers
What are the steel tower design standard?
Design standard varies by countries, but mostly are following ANSI/TIA -222-G, BS 8100, or as per request from the clients.
How are steel towers designed?
Steel towers are designed using engineering principles that consider factors like load-bearing capacity, wind resistance, seismic activity, and environmental conditions.
What materials are used in the construction of steel towers?
Steel towers are typically made from high-strength steel alloys, and the steel grade include Q235, Q345, Q420, ASTM A36, ASTM572, GR65, GR50, SS400, S355JR, etc, often galvanized to prevent rust and corrosion.
What is the standard for hot-dip galvanization?
If without special request, we will do it as GB/T 13912-2002. Also, we can follow the clients’ requirement, and do it in line with ASTM A123/153 or other standards required by the clients.
Is it possible to apply additional painting onto the surface?
Painting is totally ok, and the color can be tailored referring to pantone color match card.
